Electrofusion Sensor Saddle with Stainless Steel Thread
Electrofusion sensor saddle with stainless steel female threaded outlet is designed to provide a threaded branch connection on compatible PE / HDPE pipelines for sensors, gauges and other threaded pipeline accessories.
Connection: Electrofusion saddle + female thread
Thread: Stainless steel female thread
Type: Sensor saddle
Listed Size Range: 63×1/2"F to 110×1"F
Available Models: 12
All Models & Specifications
Available models are listed below. The first value indicates the main pipe size and the second value indicates the stainless steel female threaded outlet size.
| Pipe Size × Female Thread |
|---|
| 63×1/2″F |
| 63×3/4″F |
| 63×1″F |
| 75×1/2″F |
| 75×3/4″F |
| 75×1″F |
| 90×1/2″F |
| 90×3/4″F |
| 90×1″F |
| 110×1/2″F |
| 110×3/4″F |
| 110×1″F |
About Electrofusion Sensor Saddle with Stainless Steel Thread

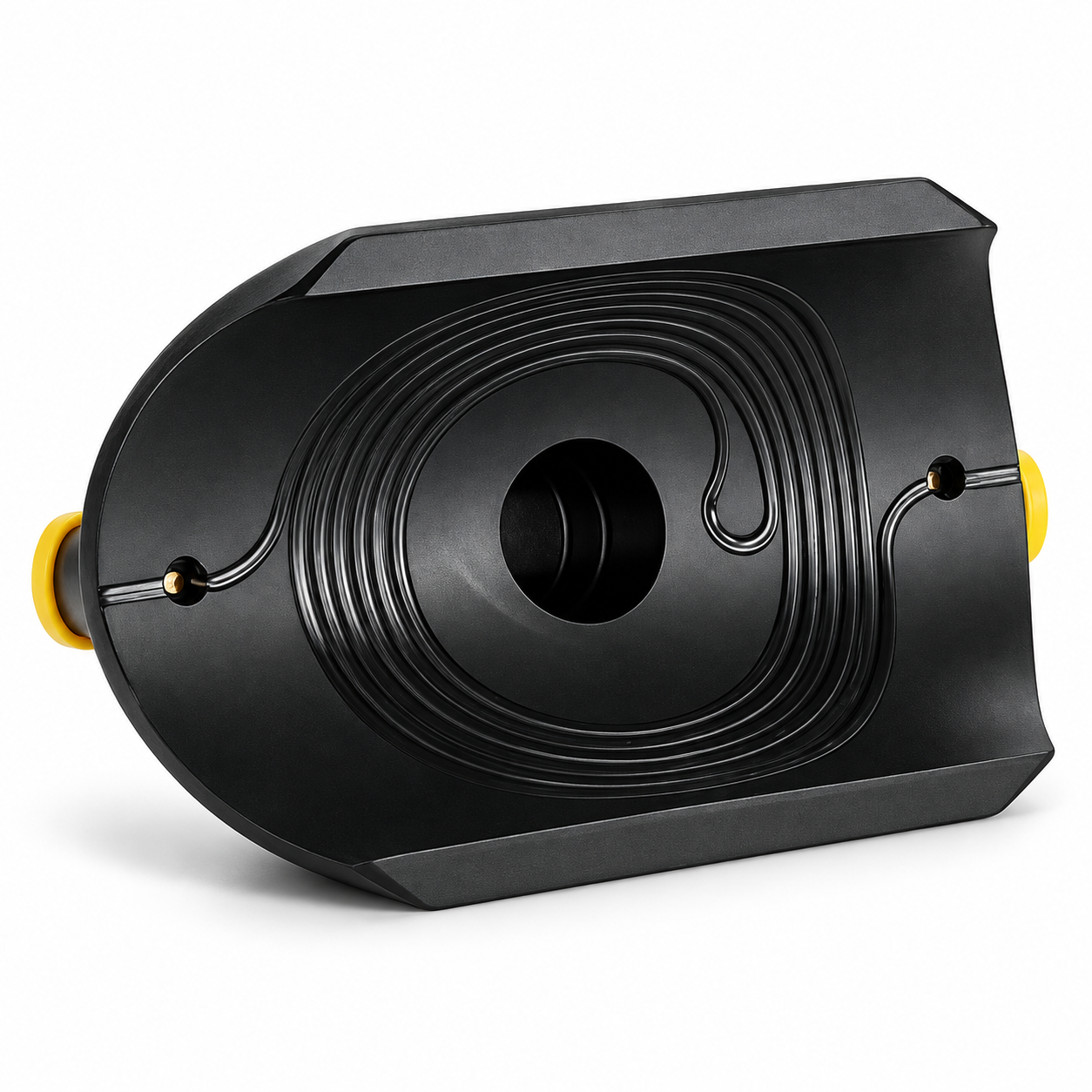

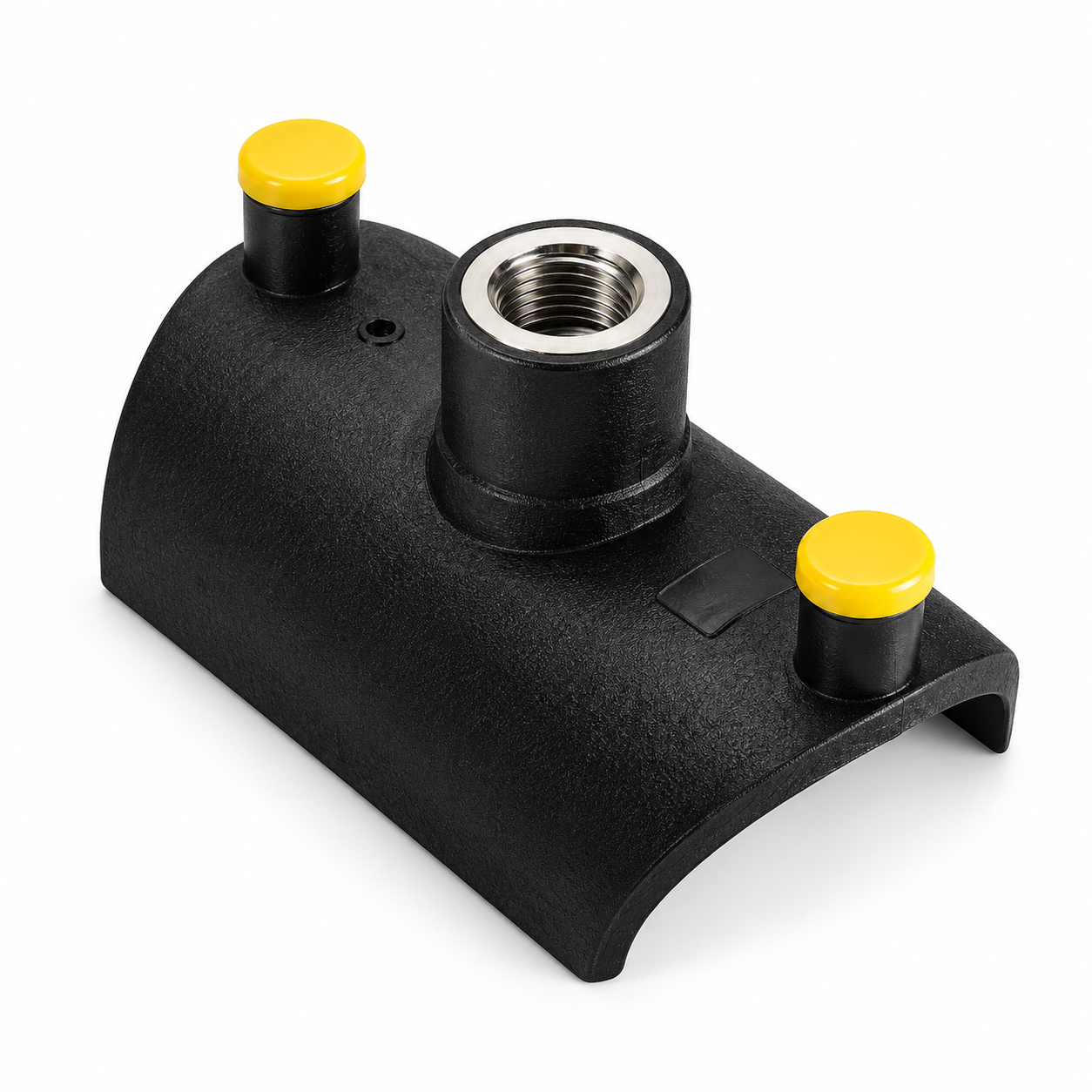

This sensor saddle combines an electrofusion saddle connection with a stainless steel female threaded outlet. It provides a compact method for adding a threaded connection point to a compatible PE / HDPE pipeline without installing a full branch tee.
Model selection should match both the main pipe diameter and the required female thread size. For example, 90×3/4"F indicates a 90 mm main pipe saddle with a 3/4 inch female threaded outlet.
Product Details
Connection Design
Electrofusion saddle connection on the pipeline side with a stainless steel female threaded outlet for compatible threaded accessories.
Model Selection
- Main pipe diameter
- Female thread size
- Required quantity
- Application conditions
Applications & Installation
Typical Applications
Suitable for compatible PE / HDPE piping systems requiring a threaded connection point for sensors, gauges or related pipeline accessories.
Installation
Prepare the pipe surface according to the electrofusion installation procedure, position and secure the saddle, complete the electrofusion welding cycle and allow the joint to cool before installing the threaded accessory.
Ordering
Please provide the required pipe size × female thread size and quantity for quotation and lead-time confirmation.
Frequently Asked Questions
How is the size specified?
The size is shown as main pipe diameter × female threaded outlet size, for example 110×1"F.
What does F mean in the model size?
F indicates a female threaded outlet.
What material is used for the threaded outlet?
The outlet uses a stainless steel female thread.
Need Electrofusion Sensor Saddles?
Send us your required pipe size, female thread size and quantity for quotation and lead-time confirmation.
