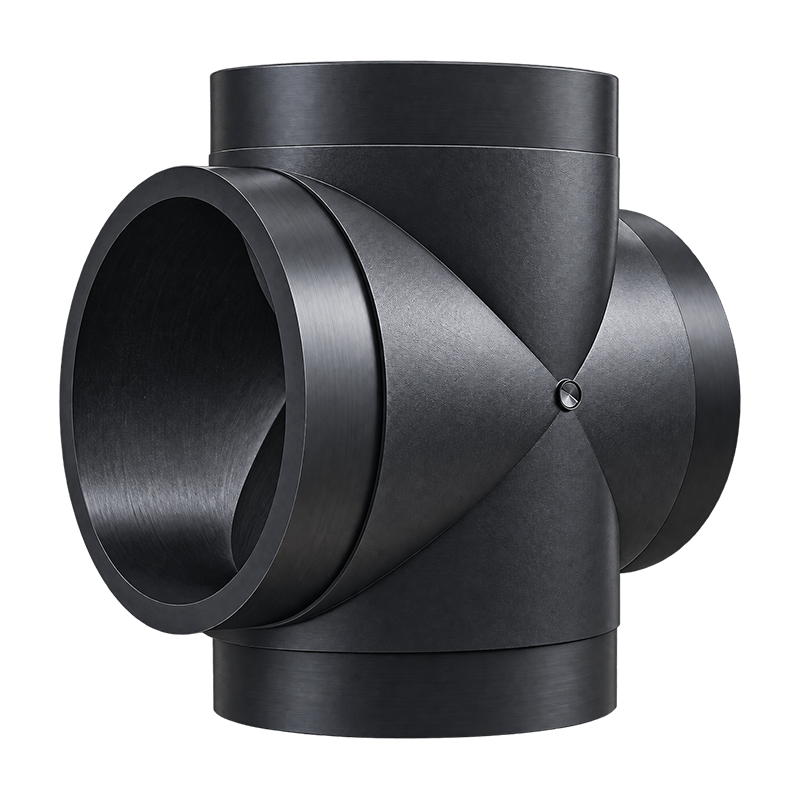

HDPE Butt Fusion Equal Cross
PE100 HDPE butt fusion equal cross for connecting four pipes of the same outside diameter in water supply, irrigation and industrial piping systems. Butt fusion welding provides a continuous and reliable connection between the fitting and compatible PE pipe.
Material: PE100 HDPE
Jointing: Butt fusion welding
SDR options: SDR11 / SDR13.6 / SDR17
Standards: ISO 4427-3 / EN 12201-3 / GB/T 13663
Dimensions
Available equal cross sizes are listed below. Please specify the required size, SDR rating and quantity when requesting a quotation.
| Size (mm) | Available SDR |
|---|---|
| 63 × 63 × 63 × 63 | 11 / 13.6 / 17 |
| 75 × 75 × 75 × 75 | 11 / 13.6 / 17 |
| 90 × 90 × 90 × 90 | 11 / 13.6 / 17 |
| 110 × 110 × 110 × 110 | 11 / 13.6 / 17 |
| 125 × 125 × 125 × 125 | 11 / 13.6 / 17 |
| 140 × 140 × 140 × 140 | 11 / 13.6 / 17 |
| 160 × 160 × 160 × 160 | 11 / 13.6 / 17 |
| 200 × 200 × 200 × 200 | 11 / 13.6 / 17 |
| 225 × 225 × 225 × 225 | 11 / 13.6 / 17 |
| 250 × 250 × 250 × 250 | 11 / 13.6 / 17 |
| 315 × 315 × 315 × 315 | 11 / 13.6 / 17 |
| 355 × 355 × 355 × 355 | 11 / 13.6 / 17 |
| 400 × 400 × 400 × 400 | 11 / 13.6 / 17 |
| 500 × 500 × 500 × 500 | 11 / 13.6 / 17 |
| 630 × 630 × 630 × 630 | 11 / 13.6 / 17 |
| 800 × 800 × 800 × 800 | 11 / 13.6 / 17 |
Product Details
Overview
The equal cross connects four PE pipes of the same outside diameter in a cross configuration. It is suitable for PE100 systems that require equal-size branches in multiple directions.
Ordering Information
- Required size in mm
- Required SDR rating
- Quantity for each size
- Applicable standard or project requirement
- Delivery destination and lead time
Applications & Installation
Typical Applications
Water supply systems, irrigation networks, industrial PE pipelines and other HDPE systems requiring four equal-size branch directions.
Butt Fusion Jointing
Pipe and fitting ends are aligned, faced, heated and fused under controlled pressure using suitable butt fusion welding equipment.
Project Selection
Match the fitting size, SDR and PE100 material specification with the connected pipe and engineering requirements of the pipeline system.
Frequently Asked Questions
What is an equal cross used for?
It is used to connect four HDPE pipes of the same outside diameter in a cross-direction piping layout.
Which SDR ratings are available?
Available SDR options include SDR11, SDR13.6 and SDR17.
What material is the fitting made from?
It is made from PE100 HDPE for butt fusion piping systems.
Send us your required sizes and quantities
Get a quotation for HDPE butt fusion equal cross fittings and related PE piping products for your project.
Related Products
Equal Tee
HDPE butt fusion tee for connecting three pipes of the same diameter.
Reducing Tee
HDPE reducing tee for a smaller branch connection from the main pipeline.

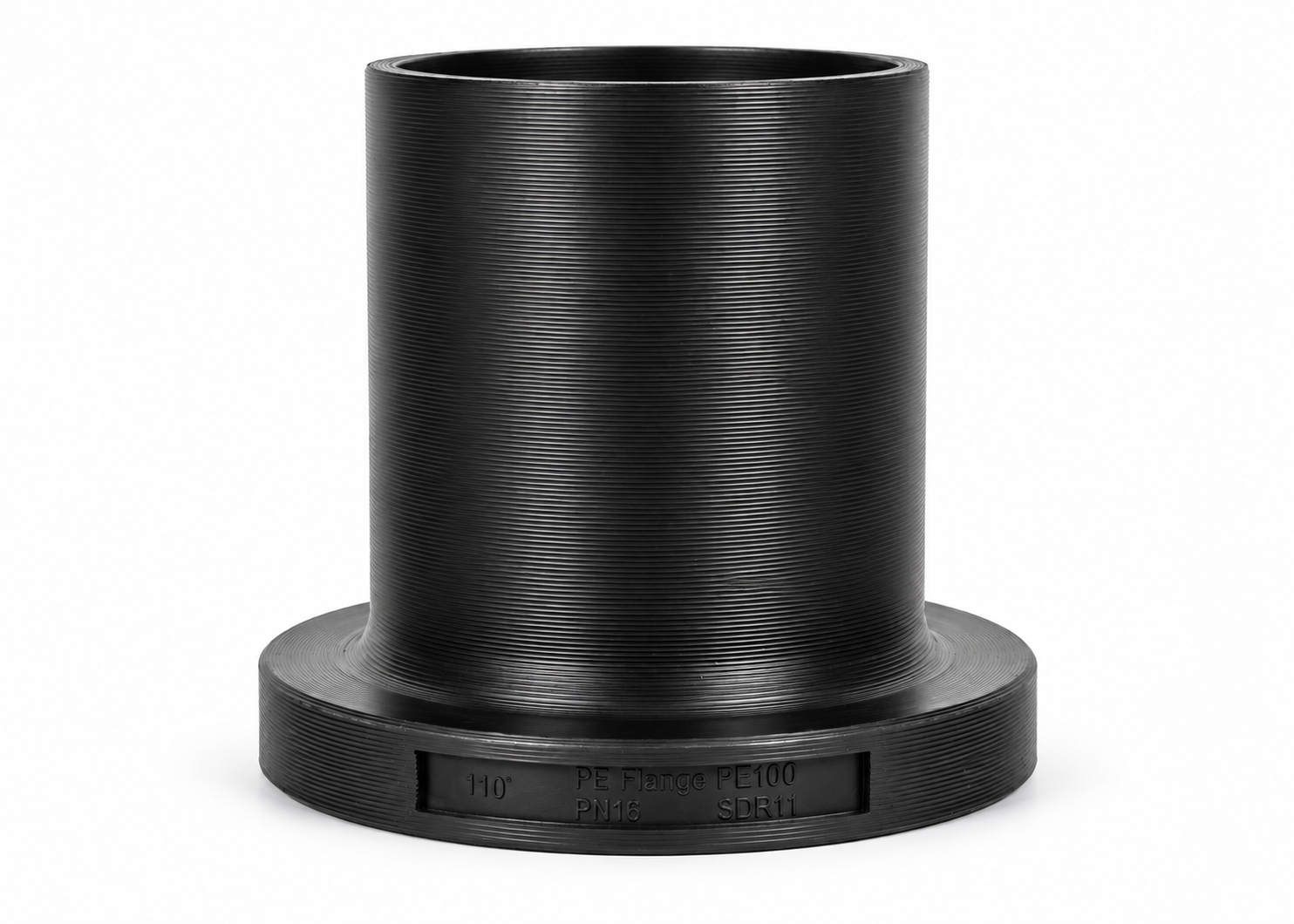

Long Spigot Stub End
