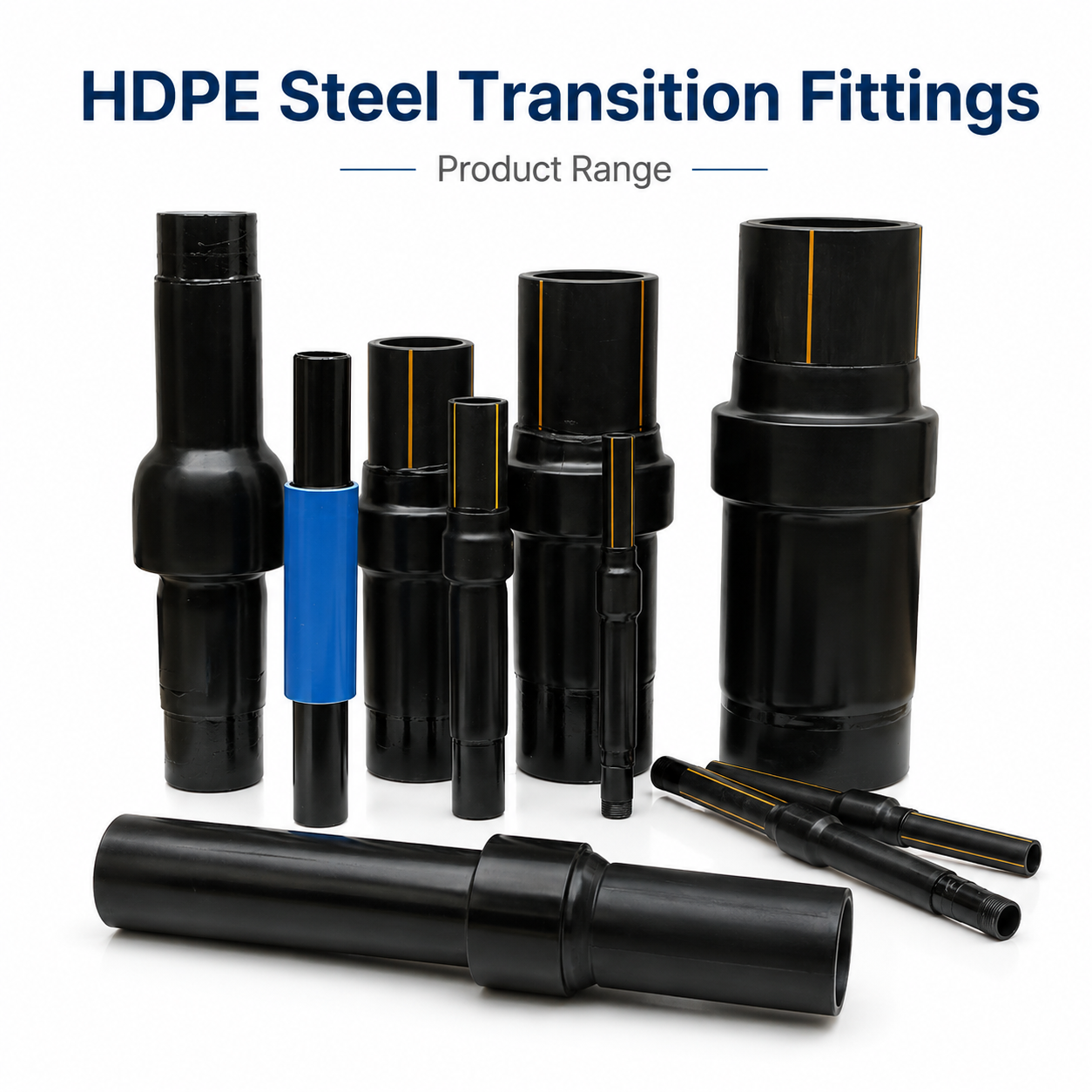

PE-to-Steel Transition Fitting for Gas

PE-to-steel transition fitting for gas is designed to connect compatible PE piping with steel pipe systems. The listed models cover a wide range of PE diameters and steel pipe outside diameters for gas pipeline transition applications.

All Models & Specifications

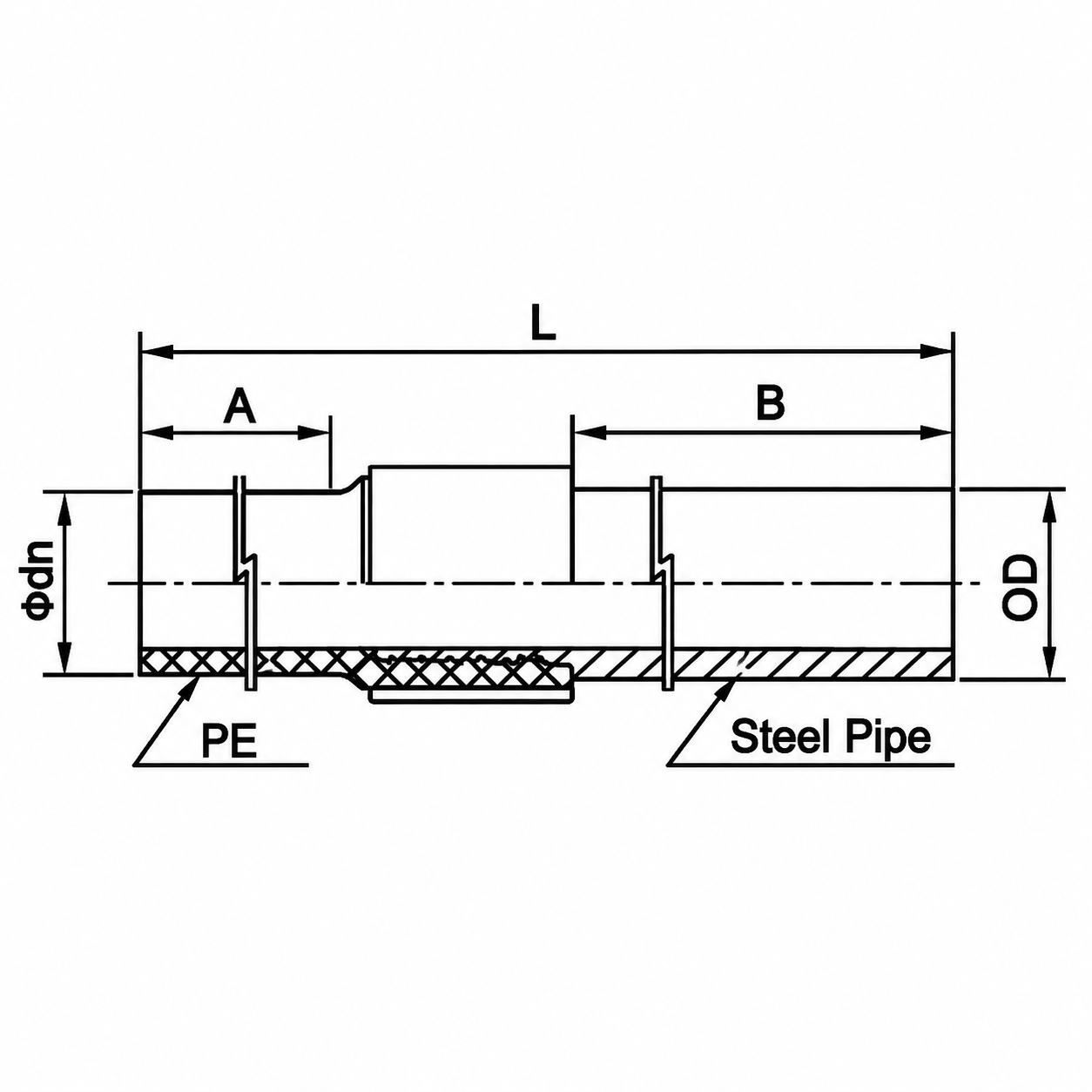

Available models and dimensional data are listed below. The technical drawing is included as the second image in the product carousel above.

Specifications	PE φ dn (mm)	Steel Pipe OD (mm)	L (mm)	A (mm)	B (mm)	Steel Pipe Inch	Steel Pipe Nominal Dia.
20×22	20	22	380	66	250	1/2″	15
25×22	25	22	410	95	250	1/2″	15
25×27	25	27	410	95	250	3/4″	20
32×22	32	22	420	111	250	1/2″	15
32×27	32	27	420	111	250	3/4″	20
32×34	32	34	430	112	250	1″	25
40×34	40	34	430	112	250	1″	25
40×38	40	38	430	112	250	–	30
40×42	40	42	430	112	250	1-1/4″	32
40×48	40	48	430	112	250	1-1/2″	40
50×34	50	34	435	118	250	1″	25
50×42	50	42	435	118	250	1-1/4″	30
50×45	50	45	435	118	250	–	–
50×48	50	48	430	118	250	1-1/2″	40
63×34	63	34	440	126	250	1″	25
63×42	63	42	440	126	250	1-1/4″	32
63×48	63	48	440	126	250	1-1/2″	40
63×57	63	57	440	126	250	2″	50
63×60	63	60	440	126	250	2″	50
75×76	75	76	440	100	250	2-1/2″	65
90×76	90	76	500	160	250	2-1/2″	65
90×89	90	89	460	140	250	3″	80
110×89	110	89	440	120	250	3″	80
110×108	110	108	460	140	250	4″	100
160×159	160	159	520	150	250	6″	150
200×219	200	219	620	150	350	8″	200
250×273	250	273	680	190	350	10″	250
315×325	315	325	680	190	350	12″	300
355×375	355	377	700	200	350	14″	350
400×406	400	406	730	230	350	16″	400
400×426	400	426	730	230	350	16″	400

About PE-to-Steel Transition Fitting for Gas

PE-to-steel transition fittings provide a connection between compatible polyethylene piping and steel pipe sections in gas pipeline systems. The correct model should be selected according to both the PE pipe diameter and the corresponding steel pipe outside diameter.

The specification table also includes reference dimensions L, A and B together with the steel pipe inch size and nominal diameter where supplied.

Product Details

Applications & Installation

Frequently Asked Questions

How should I select the correct model?

Match the required PE pipe diameter with the corresponding steel pipe outside diameter shown in the specification table.

Where can I see the dimensional drawing?

The technical drawing is the second image in the product carousel at the top of this page.

What information is needed for quotation?

Please provide the specification, required quantity and project requirements.
