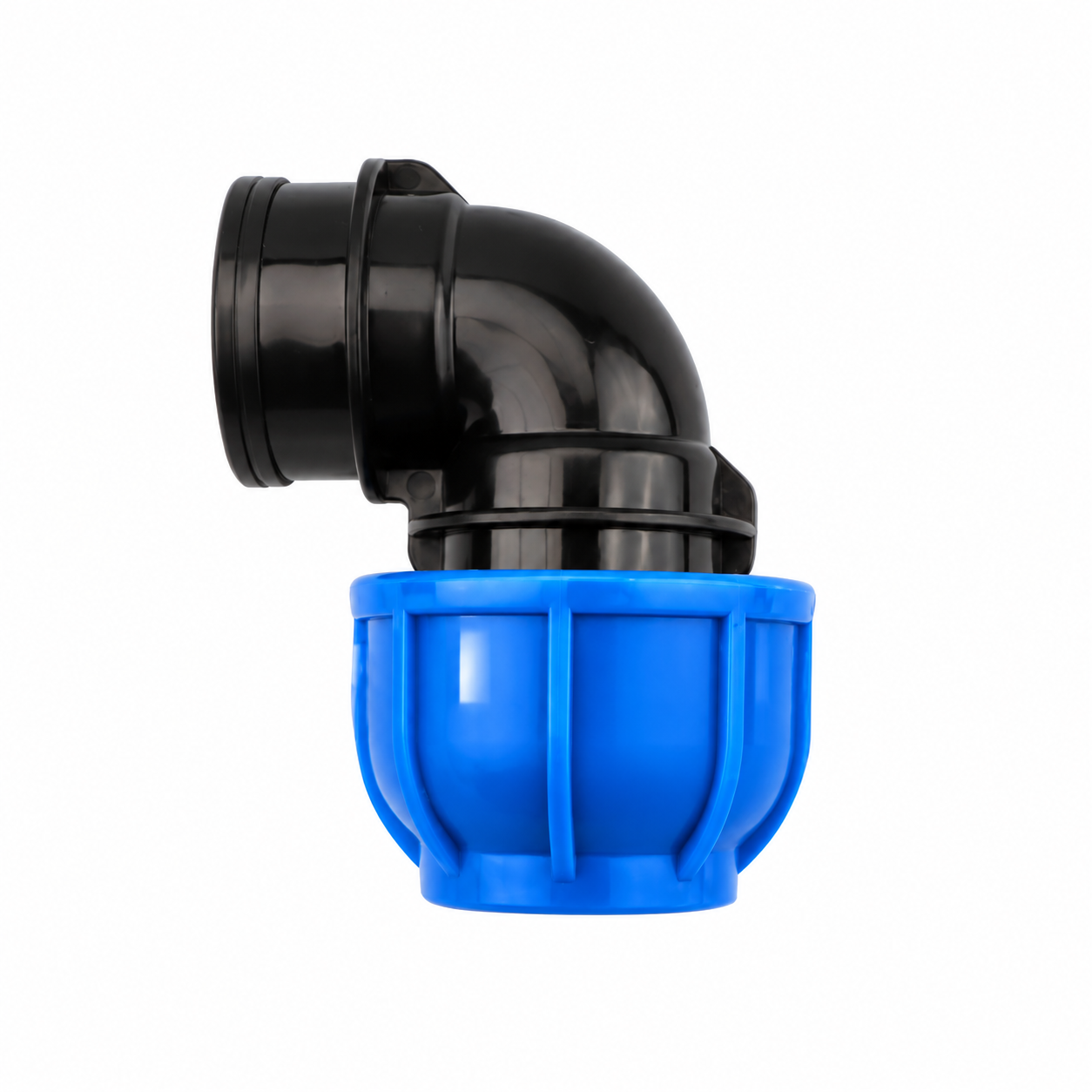

PP Compression Female Threaded 90° Elbow
PP compression female threaded 90° elbow is designed to change the direction of a compatible plastic pipeline by 90 degrees while providing a female threaded connection. It is suitable for irrigation, water distribution, landscaping and other compatible piping systems where an elbow connection to a male-threaded component is required.
Material: Polypropylene (PP)
Jointing: Mechanical compression + female thread
Type: Female threaded 90° elbow
Largest Listed Size: 110 × 4″
Available Models: 30
All Models & Specifications
Available PP compression female threaded 90° elbow models are listed below. Dimensions are shown as pipe size × female thread size.
| Pipe Size × Female Thread |
|---|
| 20 × 1/2″ |
| 20 × 3/4″ |
| 20 × 1″ |
| 25 × 1/2″ |
| 25 × 3/4″ |
| 25 × 1″ |
| 32 × 1/2″ |
| 32 × 3/4″ |
| 32 × 1″ |
| 32 × 1-1/4″ |
| 40 × 3/4″ |
| 40 × 1″ |
| 40 × 1-1/4″ |
| 40 × 1-1/2″ |
| 50 × 1″ |
| 50 × 1-1/4″ |
| 50 × 1-1/2″ |
| 50 × 2″ |
| 63 × 1-1/4″ |
| 63 × 1-1/2″ |
| 63 × 2″ |
| 63 × 2-1/2″ |
| 75 × 2″ |
| 75 × 2-1/2″ |
| 75 × 3″ |
| 90 × 2-1/2″ |
| 90 × 3″ |
| 90 × 4″ |
| 110 × 3″ |
| 110 × 4″ |
About PP Compression Female Threaded 90° Elbow
The PP compression female threaded 90° elbow combines a 90-degree change of direction with a female threaded connection. One side uses a mechanical compression joint for compatible plastic pipe, while the other side provides a female threaded outlet.
The correct model should be selected according to both the pipe outside diameter and the required female thread size. For example, 50 × 2″ indicates a 50 mm compression pipe connection with a 2-inch female thread.
About PP Compression Fittings
PP compression fittings are mechanical pipe fittings commonly used in water distribution, agricultural irrigation, landscaping and compatible utility piping systems. Their compression-joint design allows installation without fusion welding equipment.
A typical PP compression fitting uses a body, compression nut, gripping components and sealing elements to create a mechanical connection. Product selection should consider pipe outside diameter, thread size where applicable, fitting type, fluid medium and project operating conditions.
Product Details
Overview
The PP compression female threaded 90° elbow provides a right-angle transition from a compatible plastic pipe to a male-threaded component.
Product Features
- Polypropylene construction
- Mechanical compression connection on pipe side
- Female threaded outlet
- 90-degree elbow configuration
- 30 listed size combinations
- No fusion welding equipment required for compression assembly
Applications & Installation
Typical Applications
Suitable for compatible water distribution, irrigation, landscaping, agricultural and utility piping systems where a 90-degree connection to a male-threaded component is required.
Installation
Cut the pipe square, clean the pipe end and insert it into the compression side according to the fitting design. Tighten the compression nut, align the elbow to the required direction, then connect the female threaded side to the matching male-threaded component using the sealing method specified for the installation.
Ordering Information
- Required pipe size × female thread size
- Quantity for each model
- Application conditions if technical matching is required
- Delivery destination
Frequently Asked Questions
What is a PP compression female threaded 90° elbow used for?
It is used to change the direction of a compatible plastic pipeline by 90 degrees while providing a female threaded outlet for connection to a male-threaded component.
How should the size be specified?
Specify the pipe size first and the female thread size second, for example 63 × 2″.
How many models are listed?
There are 30 listed size combinations on this page.
Need PP compression female threaded 90° elbows?
Send us your required pipe sizes, thread sizes and quantities for quotation and lead-time confirmation.
