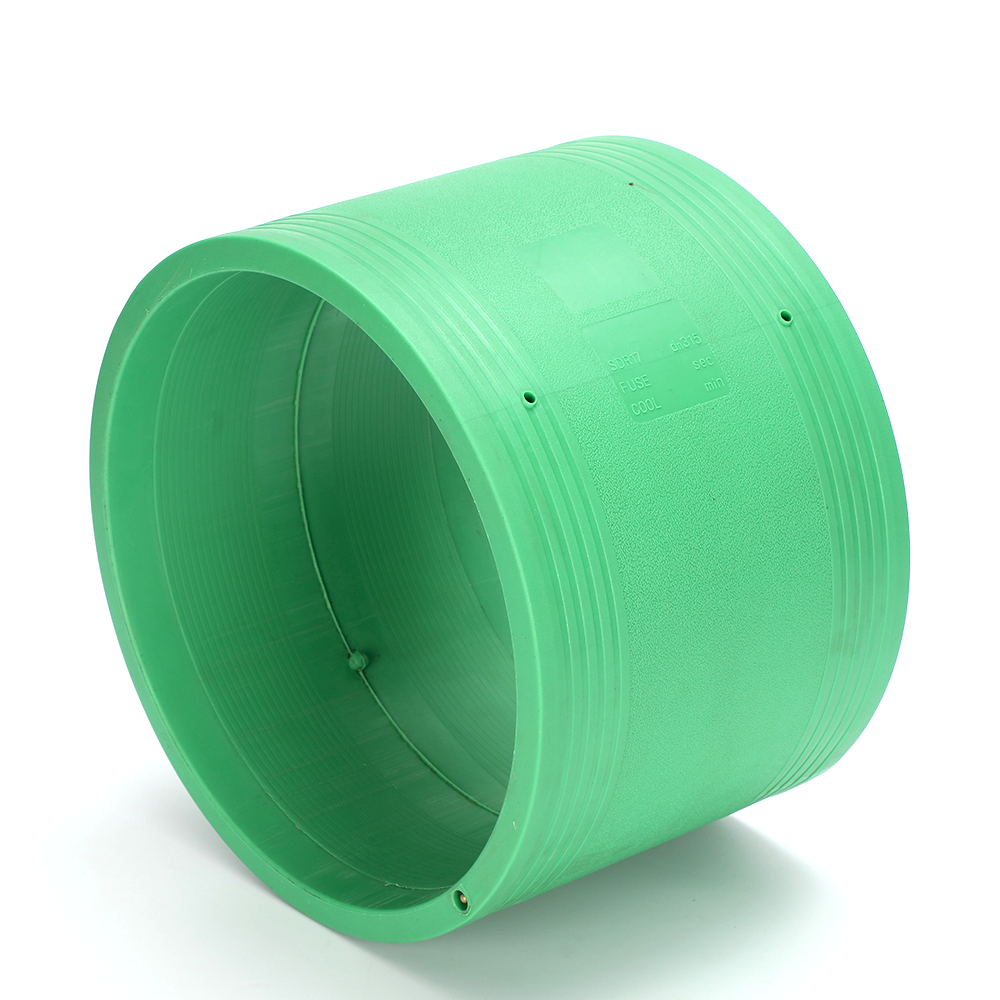

PPR Electrofusion Coupler
PPR electrofusion coupler for joining equal-size PPR pipe sections by electrofusion. This range is available in SDR11 / PN16 and SDR17 / PN10 pressure classes, with sizes from 50 mm up to 1200 mm.
Product: PPR Electrofusion Coupler
Jointing Method: Electrofusion
Pressure Classes: SDR11 / PN16; SDR17 / PN10
Size Range: 50–1200 mm
Available Models: 24
All Models & Specifications
The available coupler sizes and pressure classes are listed below.
| Size (mm) | SDR / Pressure Class |
|---|---|
| 50 | SDR11 / PN16 |
| 63 | SDR11 / PN16 |
| 75 | SDR11 / PN16 |
| 90 | SDR11 / PN16 |
| 110 | SDR11 / PN16 |
| 125 | SDR11 / PN16 |
| 140 | SDR11 / PN16 |
| 160 | SDR11 / PN16 |
| 200 | SDR11 / PN16 |
| 225 | SDR11 / PN16 |
| 250 | SDR11 / PN16 |
| 315 | SDR11 / PN16 |
| 400 | SDR11 / PN16 |
| 500 | SDR11 / PN16 |
| 630 | SDR11 / PN16 |
| 315 | SDR17 / PN10 |
| 355 | SDR17 / PN10 |
| 400 | SDR17 / PN10 |
| 500 | SDR17 / PN10 |
| 630 | SDR17 / PN10 |
| 710 | SDR17 / PN10 |
| 800 | SDR17 / PN10 |
| 1000 | SDR17 / PN10 |
| 1200 | SDR17 / PN10 |
Product Details
Application
Designed for straight-line joining of equal-diameter PPR pipe sections in compatible pressure piping systems.
Selection
Select the coupler according to the pipe outside diameter and matching SDR / PN pressure class. Sizes 315, 400, 500 and 630 mm are available in both listed pressure classes.
Ordering Information
- Pipe size
- Required SDR / PN
- Quantity
- Delivery destination
Frequently Asked Questions
Which pressure classes are available?
This coupler range is available in SDR11 / PN16 and SDR17 / PN10.
What is the maximum available size?
The listed range extends up to 1200 mm in SDR17 / PN10.
Which sizes are available in both pressure classes?
315, 400, 500 and 630 mm are listed in both SDR11 / PN16 and SDR17 / PN10.
International Buyer & Sourcing Information
PPR electrofusion couplers are used for straight connections in compatible PPR piping systems using electrofusion joining. They are relevant to plumbing wholesalers, heating-system suppliers and PPR pipe distributors. Specify pipe size, quantity and destination market for quotation.
Need PPR electrofusion couplers?
Send your required sizes, SDR / PN classes and quantities for quotation and lead-time confirmation.
