Single-Tube Filter Drier
Single-tube filter drier for refrigeration component applications, available in 18 dimensional configurations. Select the required model by molecular sieve capacity, body diameter, overall length, inlet, outlet and wall thickness.
Product Type: Single-Tube Filter Drier
Available Models: 18
Molecular Sieve: 5g–50g
Body Diameter: 16–29 mm
Overall Length: 80–170 mm
Inlet: 6.35 mm
Outlet: 2.3 / 2.5 / 3.1 mm
Wall Thickness: 0.35–0.50 mm
All Models & Specifications
Available single-tube filter drier models are listed below. Please confirm the required molecular sieve capacity, body diameter, overall length and connection dimensions when requesting a quotation.
| Molecular Sieve | Body Diameter (mm) | Overall Length L (mm) | Inlet (mm) | Outlet (mm) | Wall Thickness (mm) |
|---|---|---|---|---|---|
| 5g | 16 | 80 | 6.35 | 2.3 | 0.37 |
| 7g | 16 | 90 | 6.35 | 2.3 | 0.37 |
| 10g | 16 | 115 | 6.35 | 2.3 | 0.37 |
| 10g | 19 | 100 | 6.35 | 2.3 | 0.37 |
| 12g | 19 | 105 | 6.35 | 2.3 | 0.37 |
| 13g | 19 | 110 | 6.35 | 2.3 | 0.37 |
| 15g | 19 | 115 | 6.35 | 2.5 | 0.35 |
| 18g | 19 | 128 | 6.35 | 2.3 | 0.37 |
| 20g | 24 | 125 | 6.35 | 2.5 | 0.35 |
| 20g | 19 | 141 | 6.35 | 2.3 | 0.37 |
| 20g | 25 | 120 | 6.35 | 2.3 | 0.45 |
| 25g | 25 | 125 | 6.35 | 2.3 | 0.45 |
| 30g | 25 | 140 | 6.35 | 2.3 | 0.45 |
| 35g | 25 | 155 | 6.35 | 2.3 | 0.45 |
| 40g | 24 | 150 | 6.35 | 3.1 | 0.35 |
| 40g | 25 | 170 | 6.35 | 2.3 | 0.45 |
| 50g | 29 | 160 | 6.35 | 3.1 | 0.35 |
| 50g | 29 | 160 | 6.35 | 2.3 | 0.5 |
Product Details
Model Selection
Select the model according to molecular sieve capacity, body diameter, overall length, inlet and outlet dimensions, and wall thickness.
- Molecular sieve: 5g to 50g
- Body diameter: 16 to 29 mm
- Overall length: 80 to 170 mm
- Inlet: 6.35 mm
- Outlet options: 2.3 / 2.5 / 3.1 mm
Dimension Reference

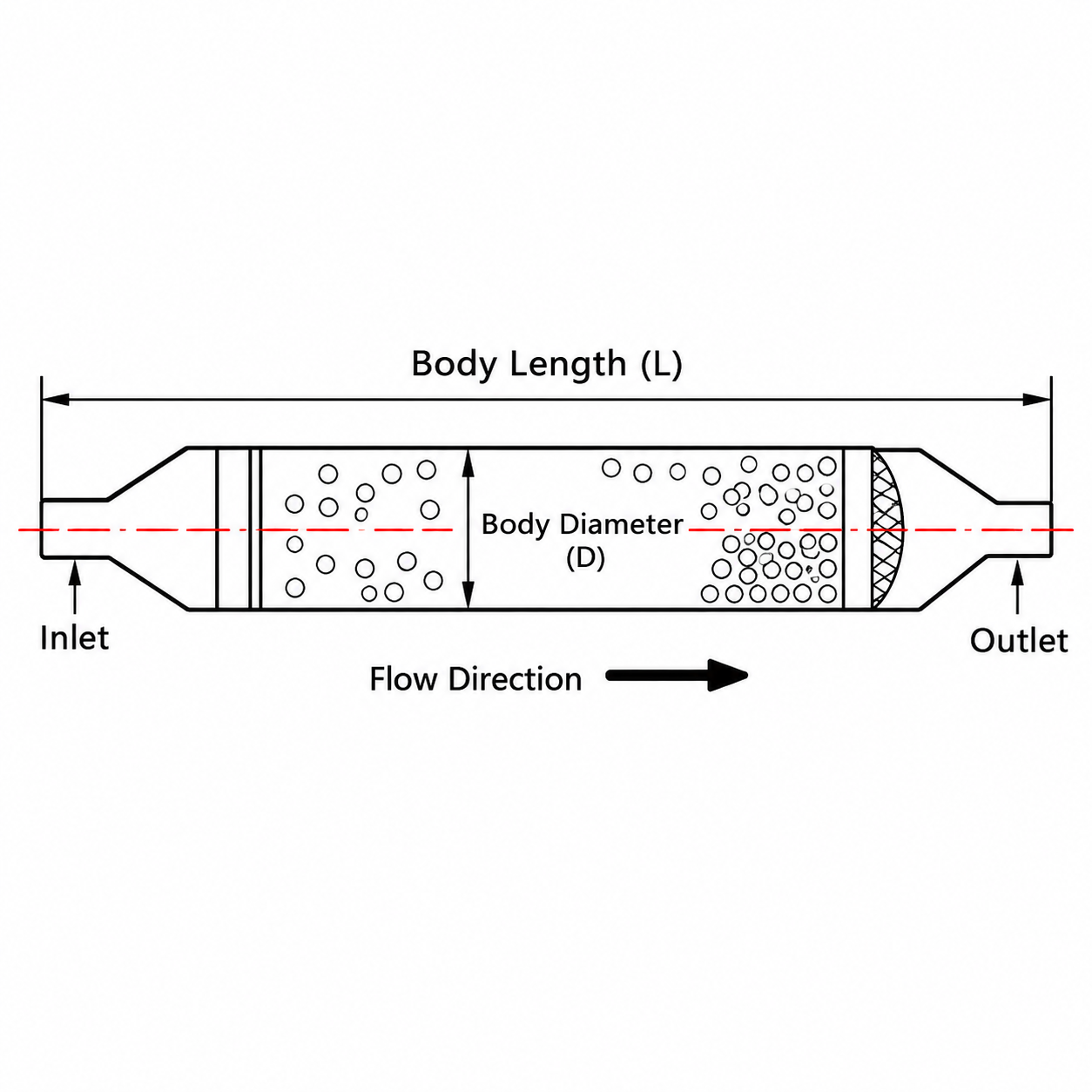

The dimension drawing is included as the fourth image in the product carousel. “L” indicates the overall length. Please compare the required dimensions with the specification table before ordering.
For quotation, send the required model dimensions and quantity for each size.
Ordering Information
Please provide the molecular sieve capacity, body diameter, overall length, inlet, outlet, wall thickness and required quantity. If you have an existing sample or drawing, you can also send it for dimension matching.
Frequently Asked Questions
How many models are listed?
The current specification table contains 18 dimensional configurations.
What information should I provide for model selection?
Please provide the molecular sieve capacity, body diameter, overall length, inlet size, outlet size and wall thickness.
Can you match a model from my drawing or sample dimensions?
Yes. Send the available dimensions or drawing together with the required quantity so the specification can be checked against the listed models.
International Buyer & Sourcing Information
Refrigeration filter driers are commonly purchased by HVAC/R distributors, refrigeration parts wholesalers, service companies and equipment suppliers for liquid-line filtration and moisture-control applications. Buyers sourcing filter drier components should match the model and connection configuration with the intended refrigeration system.
For bulk purchasing or import orders, please provide the required model, connection specification, quantity and destination market. This allows us to prepare a clear quotation and confirm the available configuration for your application.
Need Single-Tube Filter Driers?
Send us the required dimensions and quantities for quotation and model confirmation.
