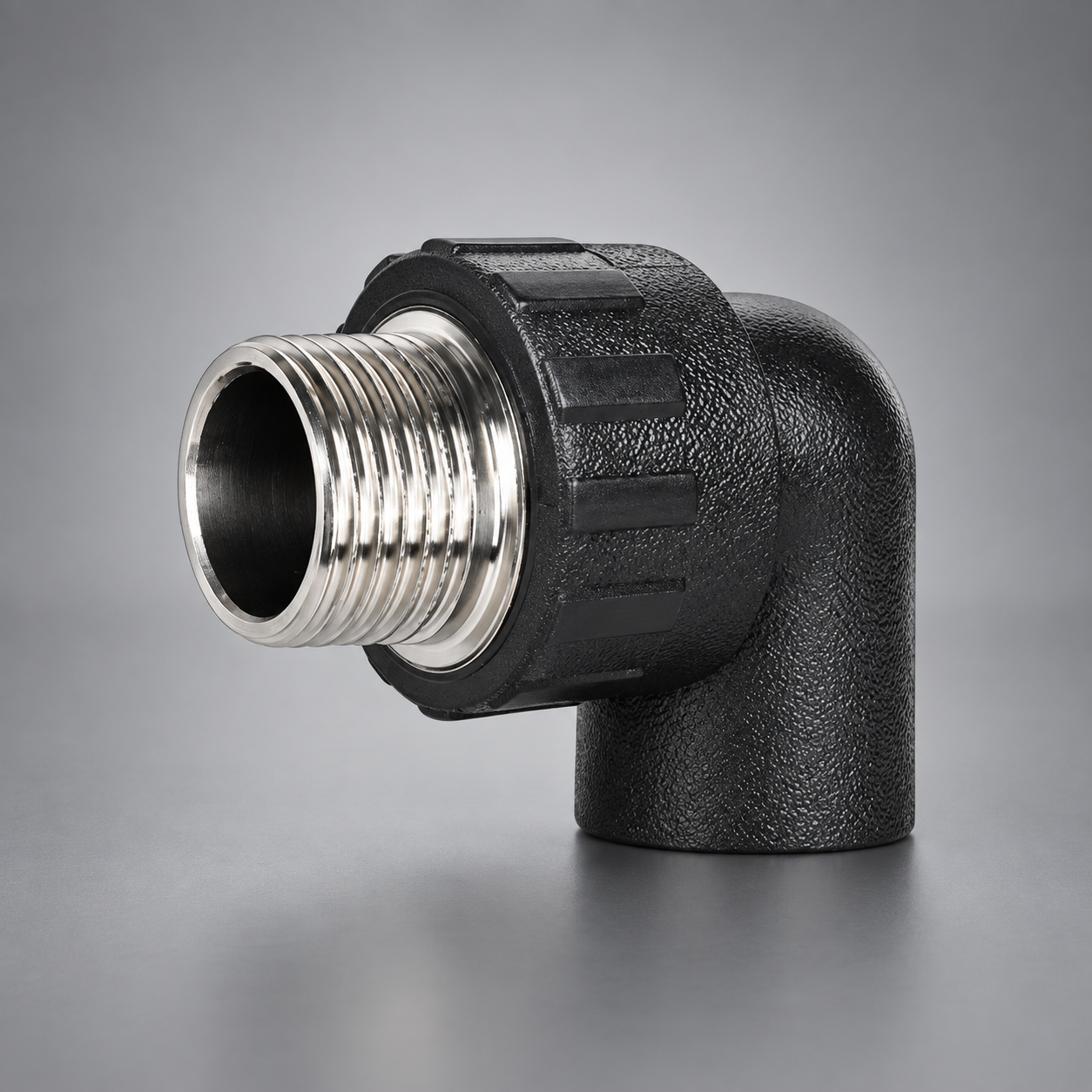

HDPE Socket Fusion Male Threaded 90° Elbow
PE100 HDPE socket fusion male threaded 90° elbow combines a socket-fusion PE connection with a male threaded outlet to change pipeline direction by 90 degrees while transitioning to a compatible female threaded component. It is suitable for water supply, irrigation and compatible industrial PE piping systems. Explore HDPE Socket Fusion Pipe Fittings for the complete product range.
Material: PE100 HDPE
PE Jointing: Socket fusion welding
Thread Connection: Male thread
Angle: 90°
PE Size Range: 20–63 mm
Thread Range: 1/2″–2″
Available Models: 9
All Models & Specifications
Available HDPE socket fusion male threaded 90° elbow models are listed below. The format is PE socket size × male thread.
| PE Size × Male Thread |
|---|
| 20×1/2″ M |
| 25×1/2″ M |
| 25×3/4″ M |
| 32×1/2″ M |
| 32×3/4″ M |
| 32×1″ M |
| 40×1-1/4″ M |
| 50×1-1/2″ M |
| 63×2″ M |
Product Details
Overview
The male threaded 90° elbow changes the direction of a socket-fusion PE line and provides a male threaded transition at the outlet. It is useful where a PE pipeline must connect at a right angle to a female threaded valve, fitting or equipment connection.
Product Features
- PE100 HDPE body
- Socket fusion connection on PE side
- Male threaded outlet
- 90-degree direction change
- 9 listed models
- PE sizes from 20 to 63 mm
Applications & Installation
Typical Applications
Water supply, agricultural irrigation, utility PE piping and compatible industrial systems requiring a 90-degree transition from PE socket-fusion pipework to a female threaded component.
Installation
Socket-fuse the PE side using the correct heating tools and alignment procedure. After cooling, connect the male threaded outlet to the matching female threaded component using the sealing method specified for the application. Avoid excessive tightening.
Ordering Information
- Required PE socket size
- Required male thread size
- Quantity for each model
- Delivery destination
Frequently Asked Questions
How should I specify the model?
Specify the PE socket size first and the male thread size second, for example 32×1″ M.
What is this elbow used for?
It is used to change pipeline direction by 90 degrees while transitioning from a socket-fusion PE connection to a male threaded outlet.
How is the PE side installed?
The PE side is installed by socket fusion welding using heating tools matched to the selected pipe and fitting size.
International Buyer & Sourcing Information
HDPE socket fusion male threaded 90° elbows are commonly sourced by irrigation distributors, plumbing wholesalers and HDPE pipe suppliers for 90-degree directional changes with male threaded outlets. Specify pipe size, thread size, quantity and destination market.
Need HDPE socket fusion male threaded 90° elbows?
Send us your required PE sizes, thread sizes and quantities for a quotation and lead-time confirmation.
