HDPE Socket Fusion Male Threaded Tee
PE100 HDPE socket fusion male threaded tee combines two socket-fusion PE connections with a male threaded branch outlet. It is designed for water supply, irrigation and compatible industrial PE piping systems requiring a threaded branch transition. Explore HDPE Socket Fusion Pipe Fittings for the complete product range.
Material: PE100 HDPE
PE Jointing: Socket fusion welding
Branch Connection: Male thread
Main PE Size Range: 20–63 mm
Thread Range: 1/2″–2″
Available Models: 9
All Models & Specifications
Available HDPE socket fusion male threaded tee models are listed below. The format is main PE size × male thread × main PE size.
| PE Size × Male Thread × PE Size |
|---|
| 20×1/2″ M×20 |
| 25×1/2″ M×25 |
| 25×3/4″ M×25 |
| 32×1/2″ M×32 |
| 32×3/4″ M×32 |
| 32×1″ M×32 |
| 40×1-1/4″ M×40 |
| 50×1-1/2″ M×50 |
| 63×2″ M×63 |
Product Details
Overview
The male threaded tee creates a threaded branch connection from a socket-fusion PE main line. The two straight-through ends are socket fused to PE pipe, while the branch provides a male threaded connection for a compatible component.
Product Features
- PE100 HDPE body
- Two socket-fusion PE connections
- Male threaded branch outlet
- 9 listed models
- Main PE sizes from 20 to 63 mm
- Male threads from 1/2″ to 2″
Applications & Installation
Typical Applications
Water supply, agricultural irrigation, utility PE piping and compatible industrial systems requiring a threaded branch from a socket-fusion PE main line.
Installation
Socket-fuse both PE ends using the correct heating tools and alignment procedure. After cooling, connect the male threaded branch to the compatible female threaded component using the sealing method specified for the application. Avoid excessive tightening.
Ordering Information
- Main PE pipe size
- Male thread size
- Quantity for each model
- Delivery destination
Frequently Asked Questions
How should I specify the model?
Specify the main PE size, male branch thread, then the second main PE size, for example 32×1″ M×32.
What is this tee used for?
It is used to create a male threaded branch connection from a socket-fusion PE pipeline.
How are the PE ends installed?
The PE ends are installed by socket fusion welding using heating tools matched to the selected pipe and fitting size.
International Buyer & Sourcing Information
HDPE socket fusion male threaded tees are sourcing components for compatible HDPE pipelines requiring a branch outlet with a male thread. They are relevant to irrigation, water and plastic-pipe distributors. Provide main size, thread size, quantity and destination market.
Need HDPE socket fusion male threaded tees?
Send us your required sizes, thread sizes and quantities for a quotation and lead-time confirmation.
Related Products

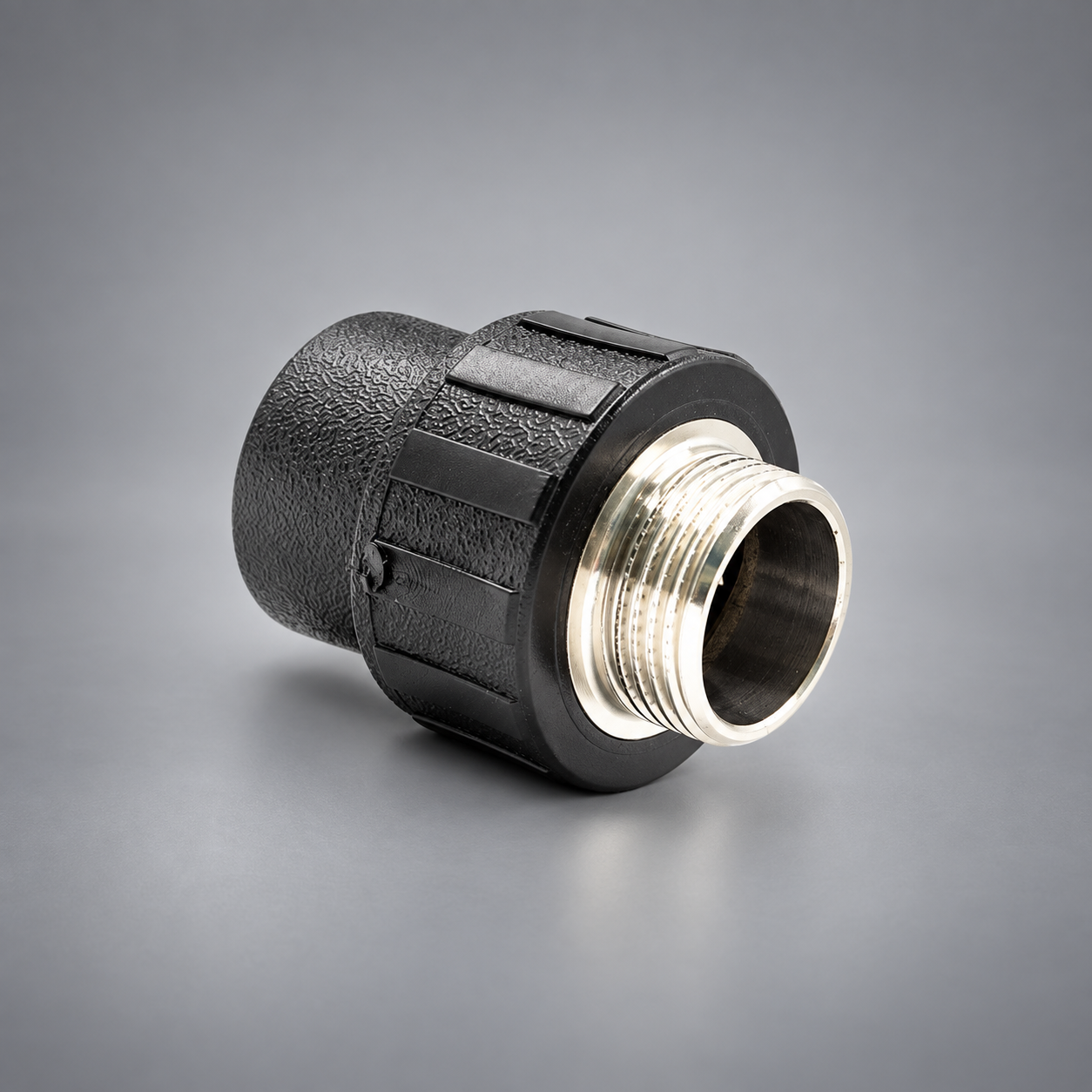

Male Threaded Adapter
