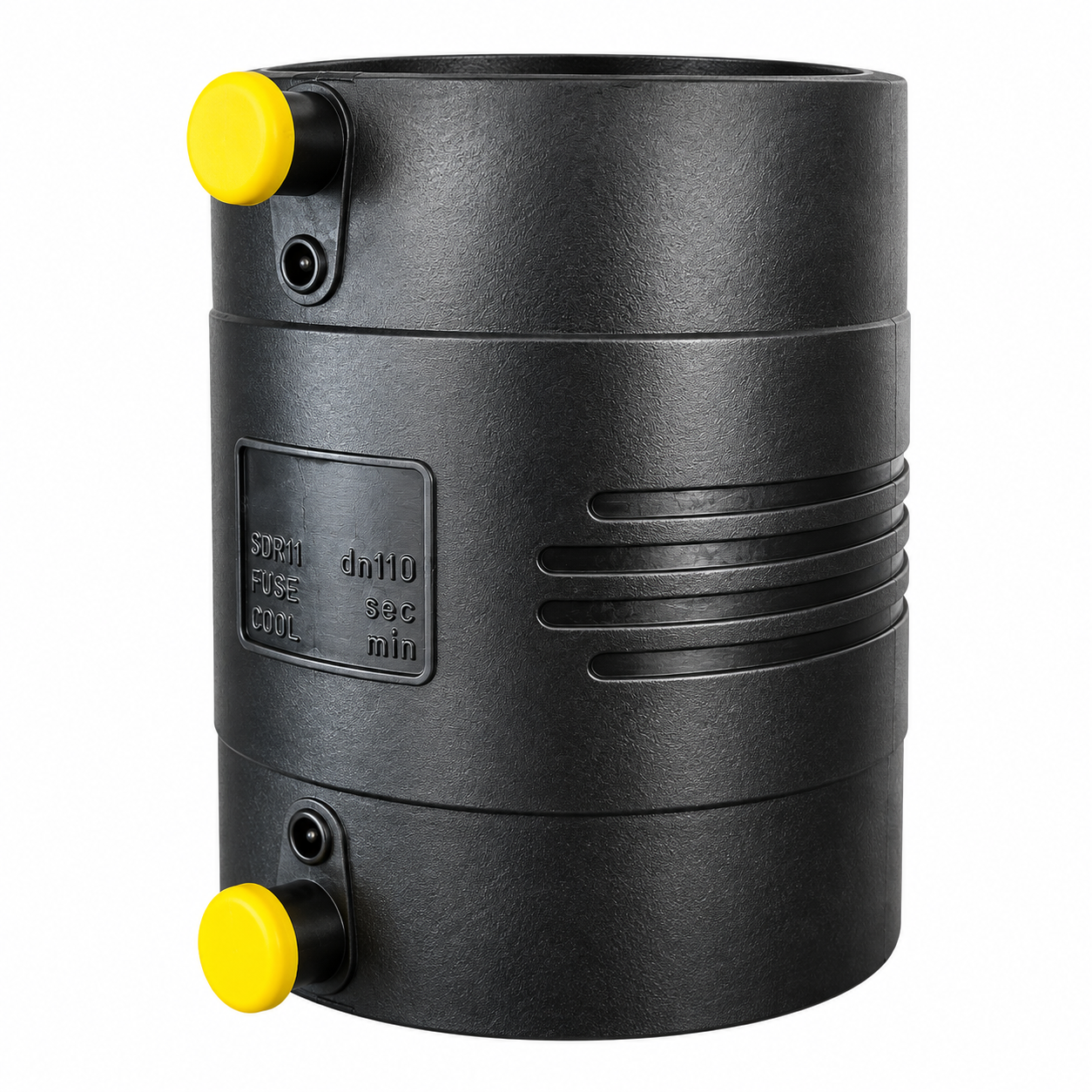

HDPE Electrofusion Coupler
PE100 HDPE electrofusion coupler for straight connection of PE pipes in water supply, irrigation and industrial piping systems. The range covers SDR11 / PN16 from 20 to 1000 mm and SDR17 / PN10 from 315 to 1400 mm, providing options for both standard and large-diameter PE pipeline projects. Explore our Plastic Piping Systems for more PE piping products.
Material: PE100 HDPE
Jointing: Electrofusion welding
Pressure classes: SDR11 / PN16 & SDR17 / PN10, subject to size
Size range: 20–1400 mm
Standards: ISO 4427-3 / EN 12201-3 / GB/T 13663
All Models & Specifications
Available sizes are consolidated below. Please specify the required pipe outside diameter, SDR rating and quantity when requesting a quotation.
| Size (mm) | Available SDR |
|---|---|
| 20 | 11 |
| 25 | 11 |
| 32 | 11 |
| 40 | 11 |
| 50 | 11 |
| 63 | 11 |
| 75 | 11 |
| 90 | 11 |
| 110 | 11 |
| 125 | 11 |
| 140 | 11 |
| 160 | 11 |
| 180 | 11 |
| 200 | 11 |
| 225 | 11 |
| 250 | 11 |
| 280 | 11 |
| 315 | 11 / 17 |
| 355 | 11 / 17 |
| 400 | 11 / 17 |
| 450 | 11 / 17 |
| 500 | 11 / 17 |
| 560 | 11 / 17 |
| 630 | 11 / 17 |
| 710 | 11 / 17 |
| 800 | 11 / 17 |
| 900 | 11 / 17 |
| 1000 | 11 / 17 |
| 1200 | 17 |
| 1400 | 17 |
Product Details
Overview
The electrofusion coupler joins two PE pipes of the same outside diameter by means of an embedded heating element. When installed with compatible electrofusion equipment and correct pipe preparation, it forms a secure welded connection suitable for pressure piping systems.
Product Features
- PE100 HDPE body for compatible PE piping systems
- Barcode and electronic welding data supported
- Welding indicator for visual process confirmation
- Terminal options include 4.0 mm and 4.7 mm
- SDR11 and selected SDR17 size ranges
Applications & Installation
Typical Applications
Water supply networks, irrigation systems, industrial PE pipelines, water treatment projects and other pressure piping applications requiring a straight welded PE connection.
Electrofusion Preparation
Cut the pipe square, scrape the oxidation layer over the full insertion area, clean the prepared surface, align and clamp the joint, then weld according to the fitting data and allow the joint to cool before removing clamps or applying load.
Ordering Information
- Required size in mm
- Required SDR rating
- Quantity for each size
- Applicable project standard
- Delivery destination
Frequently Asked Questions
Which sizes are available in SDR11?
SDR11 electrofusion couplers are available from 20 mm through 1000 mm in the listed range.
Which sizes are available in SDR17?
SDR17 electrofusion couplers are available from 315 mm through 1400 mm in the listed range.
What information should I send for a quotation?
Please send the required size, SDR rating, quantity, project standard and delivery destination. We will confirm availability, pricing and lead time.
Send us your required sizes and quantities
Get a quotation for HDPE electrofusion couplers and related PE electrofusion fittings for your project.
Related Products
Butt Fusion Reducing Coupler
PE100 butt fusion reducer for joining different pipe outside diameters.

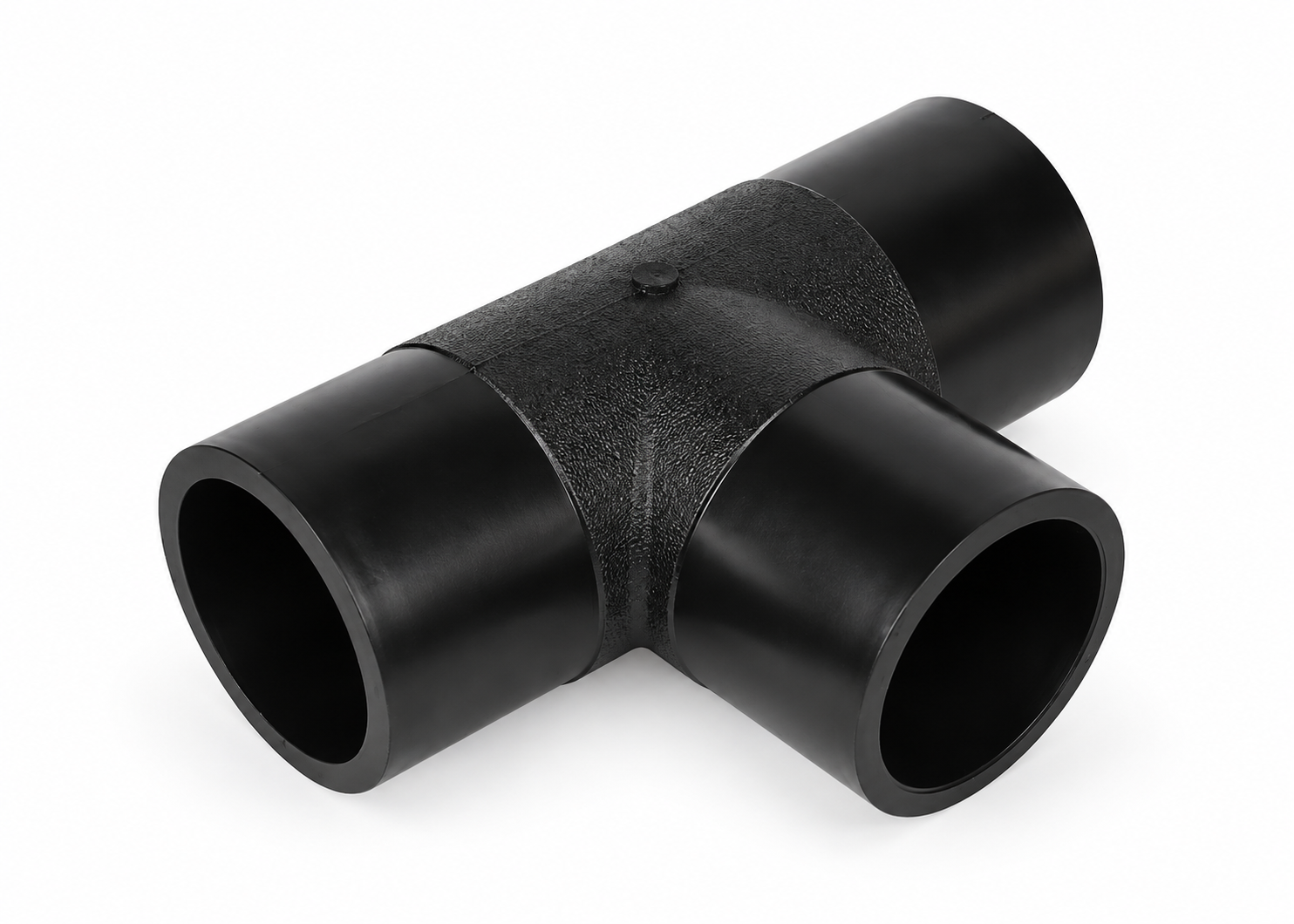

Butt Fusion Equal Tee
PE100 butt fusion tee for three equal-size pipeline connections.

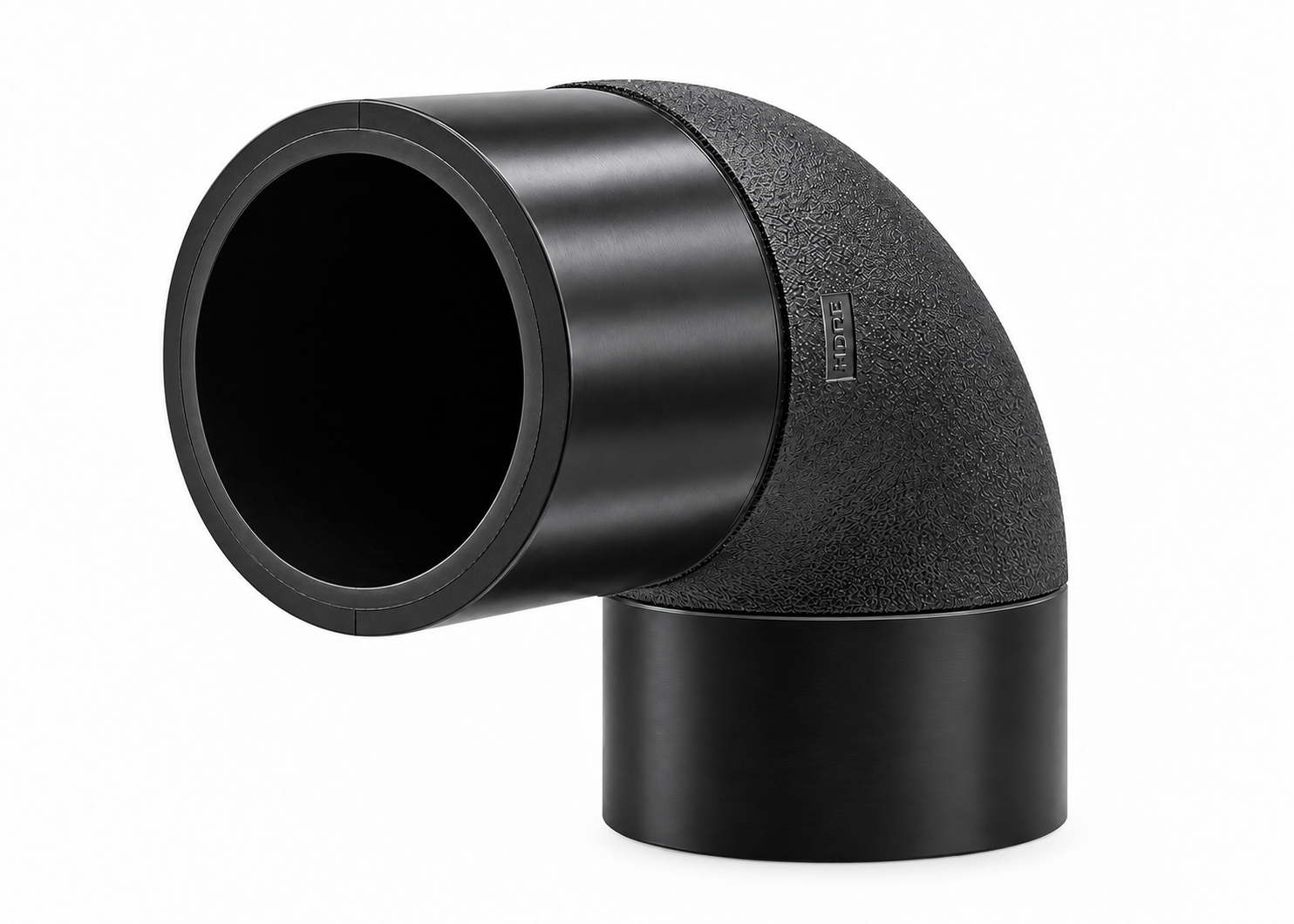

Butt Fusion 90° Elbow
