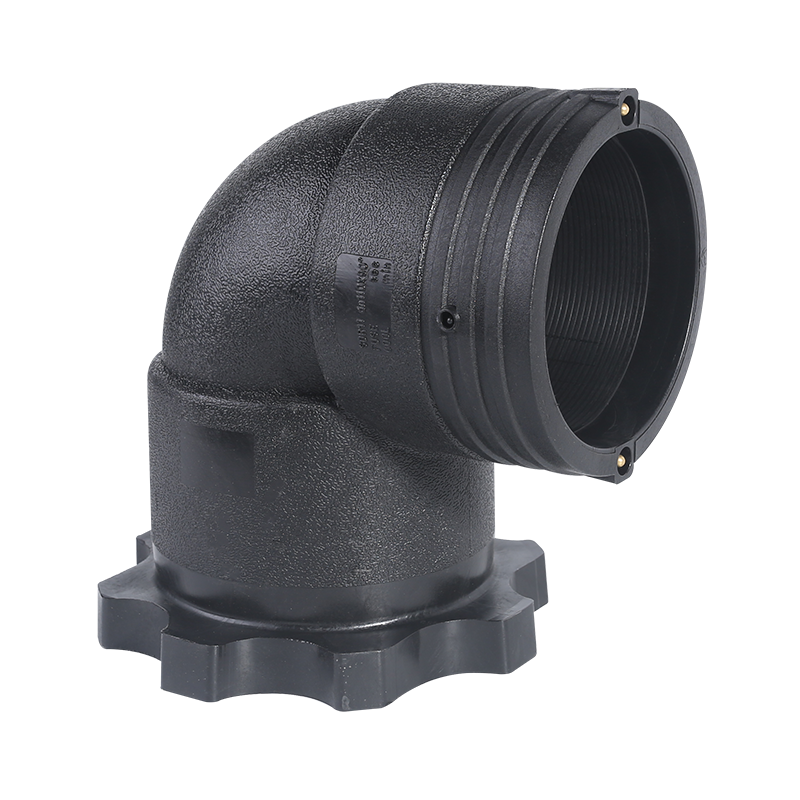

HDPE Integrated Electrofusion Flanged Elbow
PE100 HDPE integrated electrofusion flanged elbow for combining a 90-degree pipeline direction change with a flanged connection in one compact fitting. Designed for water supply, irrigation and industrial PE piping systems, this SDR11 / PN16 range is available in 110 mm and 160 mm. Explore our Plastic Piping Systems for more PE piping products.
Material: PE100 HDPE
Jointing: Electrofusion welding + flanged connection
Pressure class: SDR11 / PN16
Size range: 110–160 mm
Configuration: Integrated 90° elbow with flange connection
Standards: ISO 4427-3 / EN 12201-3 / GB/T 13663
All Models & Specifications
Available SDR11 / PN16 models are listed below. Please specify the required size and quantity when requesting a quotation.
| Size (mm) | Pressure Class |
|---|---|
| 110 | SDR11 PN16 |
| 160 | SDR11 PN16 |
Product Details
Overview
This integrated fitting combines an electrofusion elbow and a flange connection, reducing the number of separate components required at a 90-degree transition point. It is suitable for PE pipeline sections that must connect to flanged valves, equipment or other flanged pipeline components.
Product Features
- PE100 HDPE body
- Integrated 90-degree elbow and flange transition
- SDR11 / PN16 pressure class
- Compact layout reduces separate jointing components
- Suitable for electrofusion installation
- Designed for water, irrigation and industrial PE pipeline systems
Applications & Installation
Typical Applications
Water supply networks, irrigation systems, industrial PE pipelines, pump and valve connections, treatment equipment and other installations requiring both a 90-degree direction change and a flanged interface.
Electrofusion Preparation
Cut the PE pipe square, scrape and clean the complete insertion area, align the fitting without stress, and weld according to the fitting welding data. Keep the assembly fixed during the full cooling period before tightening and loading the flange connection.
Ordering Information
- Required size: 110 mm or 160 mm
- Pressure class: SDR11 / PN16
- Required quantity
- Mating flange / valve details if applicable
- Delivery destination
Frequently Asked Questions
What sizes are available?
The current SDR11 / PN16 range includes 110 mm and 160 mm.
What is the advantage of an integrated flanged elbow?
It combines the directional change and flange transition in one fitting, helping simplify installation where a PE pipeline connects to flanged equipment or valves.
What information is required for quotation?
Please provide the size, quantity, project standard, mating flange or equipment details where relevant, and delivery destination.
Need an integrated flanged elbow quotation?
Send us the required size and quantity. We can also quote related electrofusion fittings for the same PE piping project.
